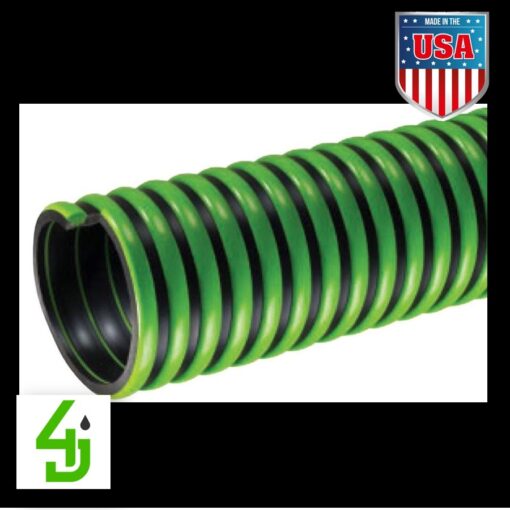

Kuriyama Tiger™ Green TG™ Series 1 in. ID and 100 ft EPDM Suction HoseEPDM tube with polyethylene helix.
General Applications
Agriculture liquid fertilizer
Irrigation lines
Liquid manure handling
Marine bilge discharge
Pumps, rental and construction dewatering
Pumps, trash
Septic and wastewater handling
Used frack solution removal
Water suction - standard duty
Features and Advantages
Superior Rubber Compounds - Tigerflex® uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance.
Superior Flexibility - Our tests show up to 22% more flexible than the competition, especially in sub-zero weather! Tiger™ Green Hose is more flexible coming off the truck and easier to handle than other similar hoses.
Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle.
"Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
Nominal Specifications
Series
TG
ID
1 in25.4 mm
OD
1.40 in 35.5 mm
Working Pressure at 68ºF
65 psi
Working Pressure at 104ºF
45 psi
Vacuum Rating at 68ºF
Full
Vacuum Rating at 104ºF
28 inHg
Min. Bending Radius at 68ºF
2.00 in
Standard Length
100 ft
Weight
0.28 lbs/ft
Compliance Footnotes
RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
