15 Gallon Side Mount Steel Hydraulic Reservoir With 10 Micron Filter p/n: SMR15SF10

15 Gallon Side Mount Steel Hydraulic Reservoir With 10 Micron Filter p/n: SMR15SF10

Regular price $449.50 USD
Regular price $643.72 USD Sale price $449.50 USD
Sale Sold out
Shipping calculated at checkout.

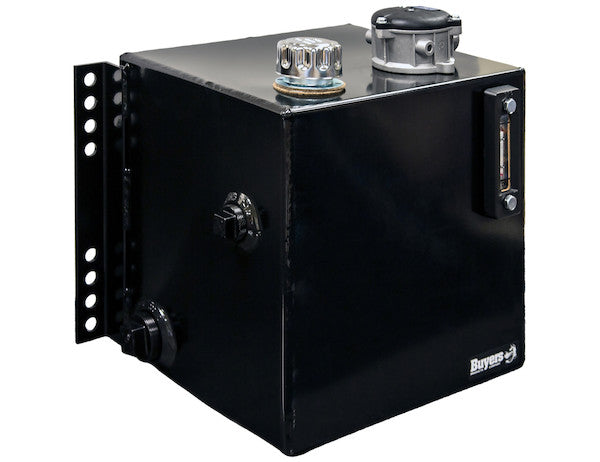

15 Gallon Side Mount Steel Hydraulic Reservoir With 10 Micron Filter p/n: SMR15SF10

    • It comes pre-drilled for a tank-mounted HFA9 series return filter to help protect your hydraulic system from damaging contaminants. You can order the reservoir with or without a 10 or 25 micron filter (shipped separately).
      • Tough, durable 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance.
      • Pre-drilled for tank-mounted HFA9 series micron filter.
      • Fluid level and temperature gauge included.
      • Contaminant-catching magnetic drain plug.
      • Welded-on mounting bracket for easy install to the truck frame.
      • The tough, durable 15 Gallon Side Mount Steel Reservoir with Micron Filter from Buyers Products features a system-protective filter for lasting performance. It's ideal for a 1 ton truck and small hydraulic applications like spreaders.


      • The reservoir features 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance, and a welded-on bracket for mounting to your truck frame.




    • Other protective features include:


    • - a quarter-turn chrome filler breather with a wire basket strainer


    • - a sight fluid level and temperature gauge


    • - an interior baffle between suction and discharge to aid in fluid cooling


    • - a magnetic drain plug to aid in preventing metallic particle contamination
  • Capacity15 Gal
  • ColorBlack
  • Depth14.50 "
  • FinishPowder-Coat
  • Hardware and Brackets Included (y/n)No
  • Height16.1 "
  • Integral Brackets (y/n)Yes
  • Integral Level Gauge (y/n)Yes
  • MaterialCarbon Steel
  • Material Gauge13
  • Mount Position Side Mount
  • Oil Level Gauge (y/n) Yes
  • Reservoir Shape Rectangle
  • Temperature Gauge (y/n) Yes
  • Width 19.58 "
  • Usable Capacity 11 Gal
  • Suction Port Size2 NPT
  • Diffuser Included (y/n) No
  • Included Valve (y/n) No
  • Magnetic Drain Plug (y/n) Yes
  • Return Line Filter Included (y/n) Yes
  • Return Line Filter Rating10 µm
  • Additional Port Size 1 1/4 NPT
  • Shipping Weight 58.130
  • UPC 724920121415
