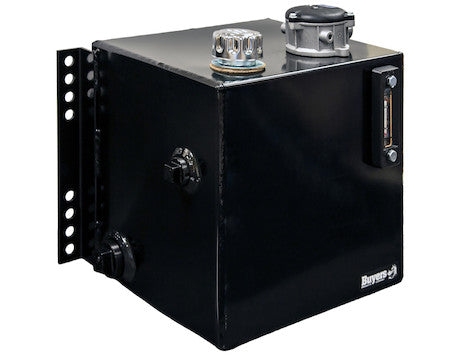

15 Gallon Side Mount Steel Hydraulic Reservoir With 25 Micron Filter p/n: SMR15SF25

15 Gallon Side Mount Steel Hydraulic Reservoir With 25 Micron Filter p/n: SMR15SF25

Regular price $499.50 USD
Regular price $695.80 USD Sale price $499.50 USD
Sale Sold out
Shipping calculated at checkout.

15 Gallon Side Mount Steel Hydraulic Reservoir With 25 Micron Filter p/n: SMR15SF25

  • Tough, durable 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance.
  • Pre-drilled for tank-mounted micron filter.
  • Fluid level and temperature gauge included.
  • Contaminant-catching magnetic drain plug.
  • Welded-on mounting bracket for easy install to the truck frame.
    • The tough, durable 15 Gallon Side Mount Steel Reservoir with Micron Filter from Buyers Products features a system-protective filter for lasting performance. It's ideal for a 1 ton truck and small hydraulic applications like spreaders.
    • The reservoir features 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance, and a welded-on bracket for mounting to your truck frame.
    • It comes pre-drilled for a tank-mounted HFA5S series return filter to help protect your hydraulic system from damaging contaminants. You can order the reservoir with or without a 10 or 25 micron filter (shipped separately).
    • Other protective features include:

    • - a quarter-turn chrome filler breather with a wire basket strainer

    • - a sight fluid level and temperature gauge

    • - an interior baffle between suction and discharge to aid in fluid cooling

    • - a magnetic drain plug to aid in preventing metallic particle contamination

Product Common Use: Spreaders, Landscaping

  • Capacity 15 Gal
  • Color Black

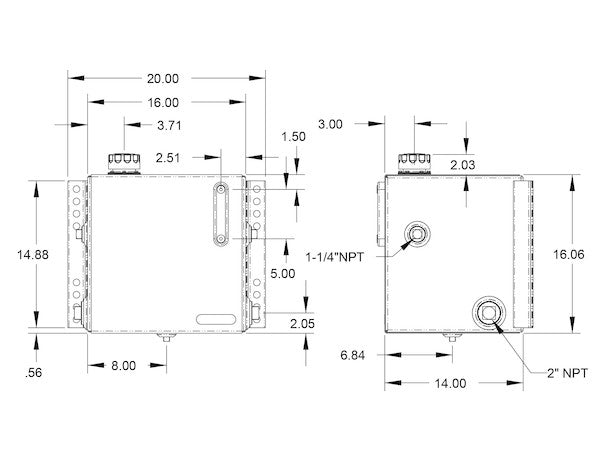

  • Depth 14.50 "
  • Finish Powder Coat
  • Hardware And Brackets Included (Y/N) No
  • Height 16.1 "
  • Integral Brackets (Y/N) Yes
  • Integral Level Gauge (Y/N) Yes
  • Material Carbon Steel
  • Material Gauge 13
  • Mount Position Side Mount
  • Oil Level Gauge (Y/N) Yes
  • Reservoir Shape Rectangle
  • Temperature Gauge (Y/N) Yes
  • Width 19.58 "
  • Usable Capacity 11 Gal
  • Suction Port Size 2 NPT
  • Diffuser Included (Y/N) No
  • Included Valve (Y/N) No
  • Magnetic Drain Plug (Y/N) Yes
  • Return Line Filter Included (Y/N) Yes
  • Return Line Filter Rating 10 µm
  • Additional Port Size 1 1/4 NPT
  • Shipping Weight 58.130
  • UPC 724920121415
