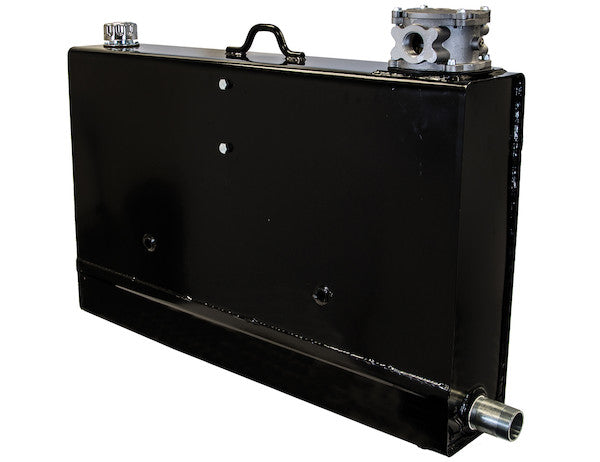

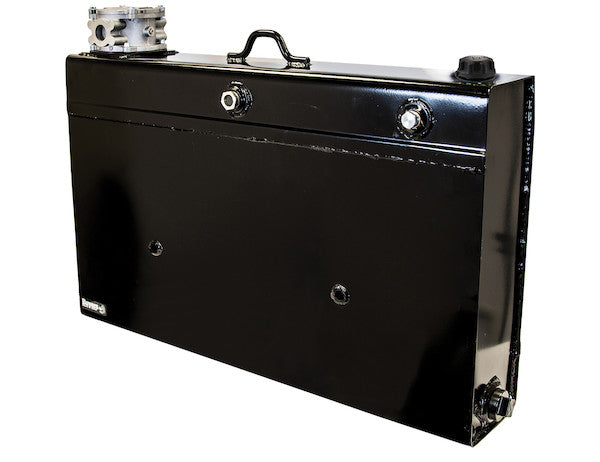

36 Gallon Steel Bulkhead Hydraulic Reservoir With 10 Micron Filter p/n: BH36SF10

36 Gallon Steel Bulkhead Hydraulic Reservoir With 10 Micron Filter p/n: BH36SF10

• The reservoir's black powder-coated finish resists rust and corrosion caused by the elements. It is ideal for placement at the back of a service body truck bed.
  • Tough, durable 12 Ga steel construction.
  • Built-in strainers and filters work to keep fluid free of contaminants.
  • Corrosion-resistant black powder-coated finish.
  • Available with either a 10 micron or 25 micron filter.
  • The 36 gal Steel Bulkhead Reservoir from Buyers Products features tough, durable 12 Ga steel construction and is designed to keep fluid cool and contaminant-free.



• The reservoir features multiple ways to reduce fluid contaminants. Choose either a 10 micron or 25 micron return line filter, depending on your filtering needs and fluid flow rate. A 150 micron stainless steel strainer and a nylon filler strainer-breather cap with a 30 mesh strainer also work to keep fluids pure.

• The reservoir also includes a built-in sight gauge for oil level, as well as ports for an optional sight/temperature gauge. Mounting hardware not included.

Product Common Use: Truck and Trailer Hydraulic Systems, Service Body Truck

• Capacity 36 Gal
• Color Black

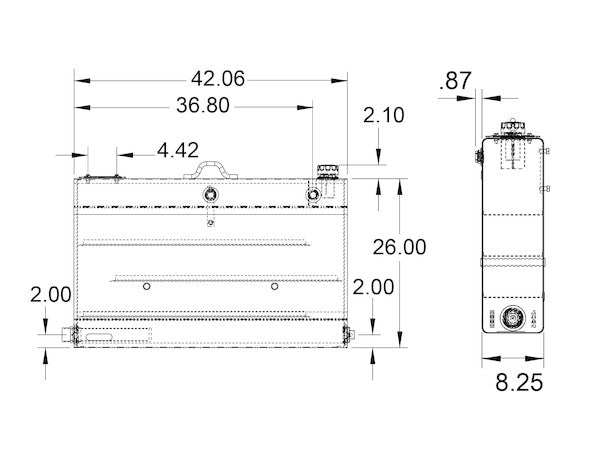

• Depth 8.50 "
• Finish Powder-Coat
• Hardware and Brackets Included (y/n) No
• Height 26 "
• Integral Brackets (y/n) No
• Integral Level Gauge (y/n) Yes
• Material Carbon Steel
• Material Gauge 12
• Mount Position Upright
• Oil Level Gauge (y/n) Yes
• Reservoir Shape Rectangle
• Temperature Gauge (y/n) Yes
• Width 42.00 "
• Usable Capacity 32 Gal
• Suction Port Size 2 NPTF
• Diffuser Included (y/n) No
• Included Valve (y/n) No
• Magnetic Drain Plug (y/n) Yes
• Return Line Filter Included (y/n) Yes
• Return Line Filter Rating 10 µm
• Return Line Filter Flow Rating 50 GPM
• Additional Port Size 2 NPTF
• Mounting Hole Diameter 0.824 "
• Mounting Holes - Center to Center 19.68 "
• Mounting Holes - Center to Bottom of Tank 9.44 "
• Shipping Weight 132.000
• UPC 724920122702
