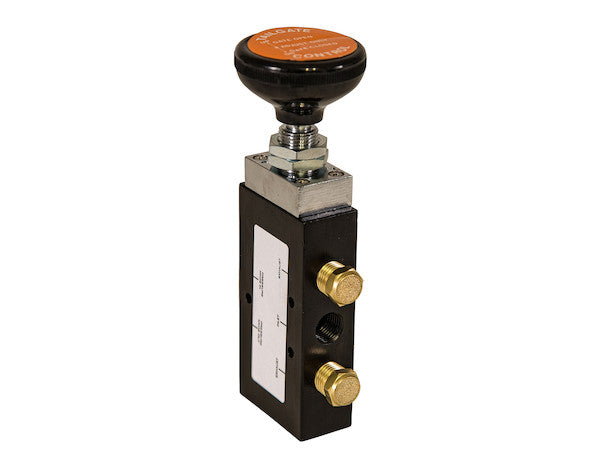

4-Way 3-Position Manual Air Valve p/n: BAV020

4-Way 3-Position Manual Air Valve p/n: BAV020

• Detented spool allows for adjusting linkage without shutting off air pressure.

• Center position blocks air at valve while opening both cylinder ports to atmosphere.

• Buyers Products 4-Way, 3-Position Air Valve controls the air flow required for precise operation in many air cylinder applications. It has a detented spool to allow for adjusting linkage without shutting off air pressure. The center position blocks air at valve while opening both cylinder ports to atmosphere.

Product Common Use: Tailgate Applications, Air Compression Applications, Pneumatic Operations

• Number Of Ports 3

• Port Size 0.250 "

• Rated Pressure 120 PSI

• Valve Actuation Manual Push/Pull

• Number Of Detents 3

• Valve Action 4-Way, 3 Position

• Spring To Neutral / Deadman Control (Y/N) N

• Valve Primary Application Air Tailgate Valves

• Port Type NPT

• Feathering No

• Shipping Weight 1.860

• UPC 724920020879
