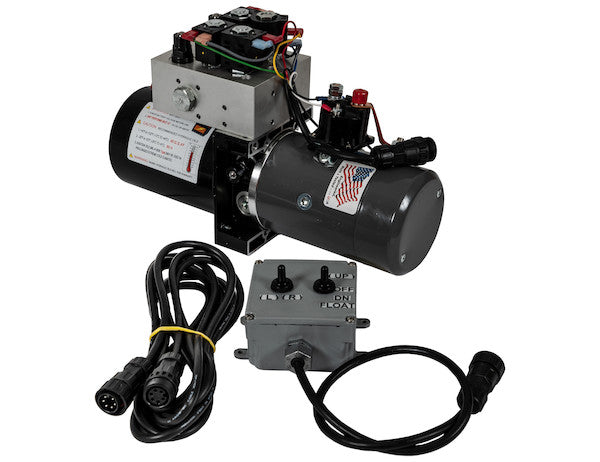

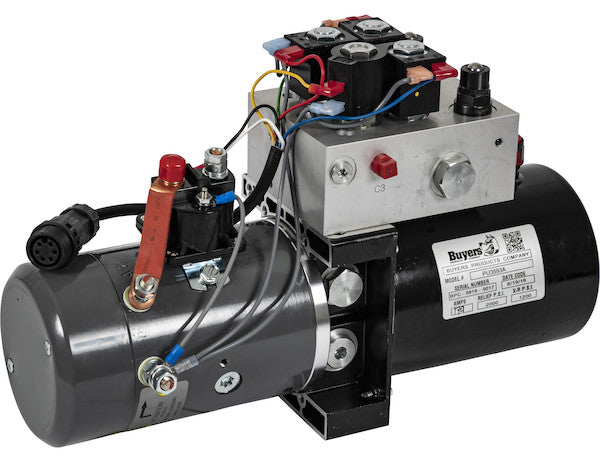

4-Way/3-Way DC Power Unit-Electric Controls Horizontal 0.32 Gallon Reservoir p/n: PU3593A

4-Way/3-Way DC Power Unit-Electric Controls Horizontal 0.32 Gallon Reservoir p/n: PU3593A

• Compact, cost-effective power for snow plow lift and angle operations.

• Includes everything you need to power the job.

• Unit contains two independent circuits: 3 way for plow hoist; 4 way for power angle.

• Easy fingertip controls.

• Crossover relief valve protects cylinder and blade should the plow strike a hidden object.

• • The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.

Product Common Use: Snow Plows

• Manual Or Push Button Push Button

• Mounting Position Horizontal

• Reservoir Material Glass Filled Nylon

• Motor Horsepower 2 HP

• Reservoir Volume 0.32 Gal

• Pressure Rating 2000 PSI

• Motor Voltage 12 VDC

• Width 6.90 "

• Length 14.84 "

• Height 9.65 "

• Spool Action Power Up/Gravity Down, Power Up/Power Down

• Number Of Cartridge Valves 4

• Outlet Port Size 1/4 NPT

• Controller Included? Y

• Control Cable Length 180 "

• Motor Power (KW)2.0

• Shipping Weight 36.000
