Central Hydraulic System 15 Gallon 6-Function With GPS Ground Speed Control 6381561

LIMITED STOCK

Central Hydraulic System 15 Gallon 6-Function With GPS Ground Speed Control 6381561

Since this item ships direct from manufacturer, please call to confirm availability prior to placing online order.

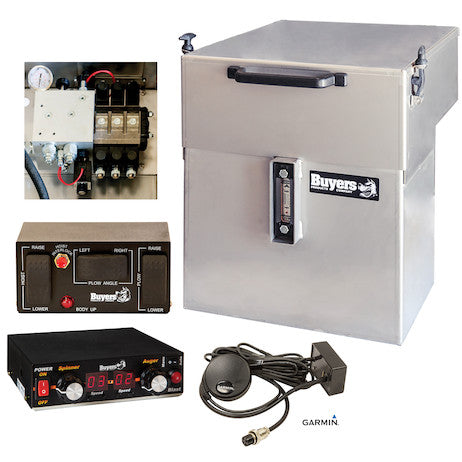

• • An all-in-one solution for installing a hydraulic system on your truck.
  • Optional GPS unit provides exceptional spreader response and material savings by automatically adjusting flow rates based on vehicle speed.
  • Integrated valves mount on the tank for simple installation and service.
  • Electric in-cab controls eliminate the need to plumb hydraulics into the cab.
  • Only the electrical cables and controller are in the cab with you, saving space and cutting noise and heat.
  • High quality 304 stainless steel reservoir stands up to salt and weather.
  • LED display with indexed dials, 1-30 second programmable blast, and low pressure pre-wet indicator.
  • Detented plow switch provides float in the down position.
  • 30 GPM adjustable flow divider.
  • Optional 8-function "Smart Switch" panel with backlit legends, LED indicator lights, and 15 amps load rating per switch (Part No. 6391308).
  • Buyers Products 15 Gallon Central Hydraulic System - 6 Function, Electric On/Off is an all-in-one way to power and operate a hoist, plow, spreader, and pre-wet system. The system is quick and easy to install and even easier to use. Features like in-cab electric controls are ideal for installers and operators alike. By eliminating the need to plumb multiple hydraulic lines into the cab, the controls cut down install time, save cab space, and keep the heat and noise outside the cab. An optional GPS-based ground speed control system gives spreader operators superior control over material usage. With the GPS installed, the spreader will automatically adjust its flow rate based on vehicle speed. This ensures a proper level of salt coverage regardless of how fast or slow the truck is moving.



  • The Central Hydraulic System includes everything you need to set up a 6-function plow, spreader, and hoist system. Simply install the reservoir assembly and plumb the flow and functions. All directional valves and spreader controls are mounted directly on the tank to streamline plumbing and make service simple.

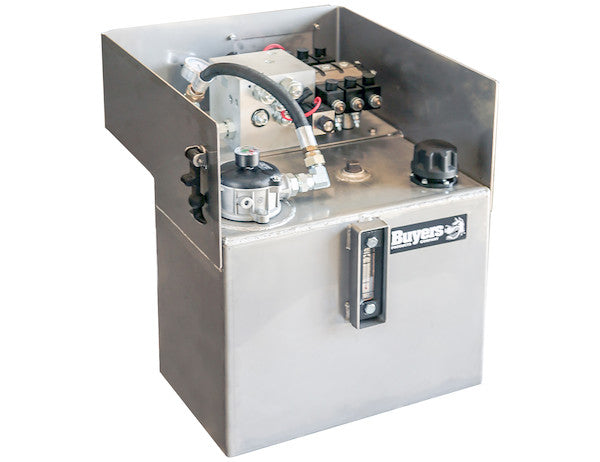

  • The 15 gallon reservoir assembly with valve enclosure is built from 304 stainless steel to stand up to road grime, salt, and inclement weather. It includes an in-tank return filter assembly, filler-strainer breather cap assembly, and a shielded sight temperature gauge. The valve enclosure features a latching stainless steel lid to provide the spreader, hoist, and plow valves additional protection.



  • The system is ideal for light to medium duty applications.


  All Systems Include:
  • Proportional spreader operation with compact 2-function or 3-function (auger-conveyor, spinner and pre-wet included with GPS versions) controls. 11 GPM, 3-way plow lift/4-way plow angle with two port reliefs and 4-way DA dump hoist with down port relief and power beyond. LED display, indexed dials, plow switch with detents to provide float in the down position, proportional spreader and auger speed control, 30 GPM adjustable flow divider valve.



  • Please contact Customer Service for further options.



  • Applications that require critical load holding, installer must use P.O. (Pilot Operated) checks or counterbalance valves as well.

  Product Common Use: Spreader/Dump Trucks, Plow/Spreader/Dump Trucks

• Reservoir TypeStandard
• Reservoir Material304 Stainless Steel
• Reservoir Volume (Gal.) 15 Gal
• Number of Functions Supported6
• Reservoir Mount PositionSide Mount
• Hoist ActionPower Up/Power Down - 1 Port Relief
• Plow ActionPower Up/Power Down
• Spreader Control IncludedYes
• Spreader Control Type Electric Over Hydraulic
• Spreader Controller HVC06
• Plow Control Included Yes
• Plow Control Type Electric
• Hoist Control Included Yes
• Hoist Control Type Electric
• GPS Capable? Yes
• GPS Included? Yes
• Oil Level/Temperature Gauge Included Yes
• Inlet Port 3/4 SAE ORB (-12)
• Work Ports 1/2 SAE ORB (-8)
• Outlet Port 2 NPT
• Suction Port 2 NPT
• Auger/Chain Port 1/2 SAE ORB (-8)
• Spinner Port 1/2 SAE ORB (-8)
• Main Relief Setting 3000 PSI
• Port Relief Hoist 500 PSI
• Port Relief Angle 1800 PSI
• Maximum Flow Rate 28 GPM
• Maximum Pressure 3000 PSI
• Return Line Filter Included? Yes
• Return Line Filter Flow Rating 26 GPM
• Return Line Filter Rating 10 µm
• Suction Filter Included? Yes
• Suction Filter Flow Rating 49 GPM
• Suction Filter Rating 150 µm
• Magnetic Drain Plug Yes
• UPC 724920151511
