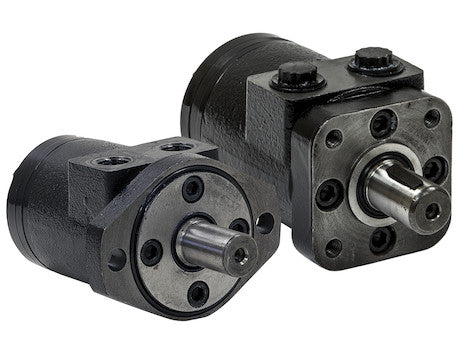

CM002P Hydraulic Motor With 2-Bolt Mount/NPT Threads And 2.8 Cubic Inches Displacement

Hydraulic Motor With 2-Bolt Mount/NPT Threads And 2.8 Cubic Inches Displacement p/n: CM002P

• Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate. \n
  • Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.
  • Designed to be economical, efficient, compact, and powerful.

  • Ideal for powering medium-duty applications such as compressors, augers, winches, cranes, and spreaders.

  • Industry-proven spool valve design.

  • State-of-the-art gerotors.
  • The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate.
  • Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.

Product Common Use: Truck and Trailer Hydraulic Systems, Medium Duty Applications, Compressors, Cranes

• Compares To 101-1025-009

• Flow (Continuous) 12 GPM

• Input Mount Type 2 Bolt

• Material Cast Iron

• Maximum Case Pressure (Without Case Drain) 1500 PSI

• Maximum Speed (Continuous) 969 RPM

• Pilot Diameter 3.25 "

• Shaft Keyway 0.25 "

• Shaft Type Straight

• Displacement 2.8 in.²

• Flow (Intermittent) 14 GPM

• Torque Rating (Continuous) 650 Inch Pound

• Torque Rating (Intermittent) 720 Inch Pound

• Port Size1/2 NPT

• Shaft Size1.00 "

• Maximum Speed At Continuous Flow 969 RPM

• Maximum Speed At Intermittent Flow 1130 RPM

• Minimum Starting Torque (Continuous Pressure) 520 Inch Pound

• Minimum Starting Torque (Intermittent Pressure) 720 Inch Pound

• Pressure Δ Bar (Continuous) 1800 PSI

• Pressure Δ Bar (Intermittent) 2400 PSI

• Shipping Weight 13.220

• UPC 724920111812
