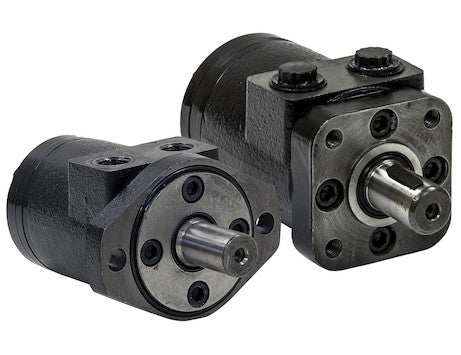

CM074P Replacement 4-Bolt 19 CIR Direct Drive Motor
CM074P Replacement 4-Bolt 19 CIR Direct Drive Motor
Regular price
$269.99 USD
Regular price
$335.14 USD
Sale price
$269.99 USD
Unit price
/
per
CM074P Replacement 4-Bolt 19 CIR Direct Drive Motor
- Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate. \n
- Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.
- Designed to be economical, efficient, compact, and powerful.
- Ideal for powering medium-duty applications such as compressors, augers, winches, cranes, and spreaders.
- Industry-proven spool valve design.
- State-of-the-art gyrators.
- The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate.
- Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
-
Compares To 101-1007-009
-
Flow (Continuous) 15 GPM
-
Input Mount Type 4 Bolt
-
Material Cast Iron
-
Maximum Case Pressure (Without Case Drain) 1500 PSI
-
Maximum Speed (Continuous) 192 RPM
-
Pilot Diameter 1.75 "
-
Shaft Keyway 0.25 "
-
Shaft Type Straight
-
Displacement 17.9 in.²
-
Flow (Intermittent) 20 GPM
-
Torque Rating (Continuous) 3110 Inch Pound
-
Torque Rating (Intermittent) 3430 Inch Pound
-
Port Size1/2 NPT
-
Shaft Size 1.00 "
-
Maximum Speed At Continuous Flow 192 RPM
-
Maximum Speed At Intermittent Flow 256 RPM
-
Minimum Starting Torque (Continuous Pressure) 2500 Inch Pound
-
Minimum Starting Torque (Intermittent Pressure) 3430 Inch Pound
-
Pressure Δ Bar (Continuous) 1350 PSI
-
Pressure Δ Bar (Intermittent) 1800 PSI
-
Shipping Weight 15.540
-
UPC 724920108478
