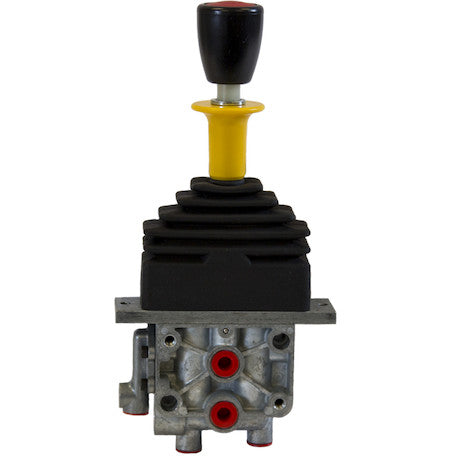

K70DFNKO Single Lever Air Control Valve -Hoist Feather Down Non-Disengage On PTO Function

• Gain complete control of your air control functions with this 5-way, 3-position, stackable air control valve with a push button auxiliary function.

• Flexible design to suit a variety of applications.

• Movement of the handle in either direction allows controlled proportional pressure output to work ports 'A' or 'B' to allow feathering. \n
  • Buyers Products K70 Series Single Lever Air Control Valves give you complete control of your pneumatic functions. These stackable valves are available in 3-way (raise, lower, and hold) or 5-way (PTO, raise, lower, inlet, and exhaust functions with a push button auxiliary function) models with 3-position (raise, lower and neutral) controls.

• Flexible design makes it easy to adapt the control valves to your application . Movement of the handle in either direction allows controlled proportional pressure output to work ports 'A' or 'B' to allow feathering.

Product Common Use: Hoists, Dump Trailers, Dump Applications

• Number Of Ports 5

• Rated Pressure 125 PSI

• Series K70

• Valve Actuation Manual Lever

• Valve Action Feather Down/Non-Disengage on PTO Function

• Spring To Neutral / Deadman Control (Y/N) Yes

• Valve Primary Application PTO/Hoist Control

• Port Type Brass Push Lock Fittings

• Feathering Yes

• Shipping Weight 3.000

• UPC 724920223607
