Kuriyama Tiger™ Green TG™ Series 2 in. ID and 100 ft EPDM Suction Hose

Kuriyama Tiger™ Green TG™ Series 2 in. ID and 100 ft EPDM Suction Hose

Kuriyama Tiger™ Green TG™ Series 2 in. ID and 100 ft EPDM Suction Hose

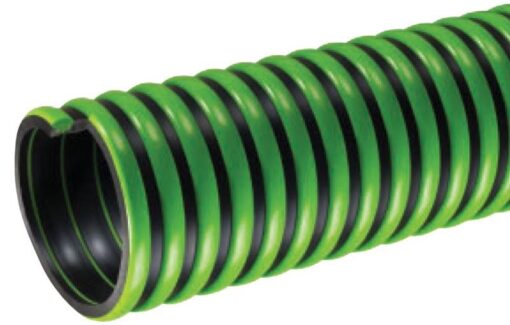

EPDM tube with polyethylene helix.


General Applications


  • Agriculture liquid fertilizers
  • Irrigation lines
  • Liquid manure handling
  • Marine bilge discharge
  • Pumps, rental and construction dewatering
  • Pumps, trash
  • Septic and wastewater handling
  • Used frack solution removal
  • Water suction - standard duty



Features and Advantages
  • Superior Rubber Compounds - Tigerflex® uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance.
  • Superior Flexibility - Our tests show up to 22% more flexible than the competition, especially in sub-zero weather! Tiger™ Green Hose is more flexible coming off the truck and easier to handle than other similar hoses.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.




Nominal Specifications

Series

 TG

ID

 2 in50.8 mm

OD

 2.51 in63.8 mm

Working Pressure at 68ºF

 50 psi

Working Pressure at 104ºF

 35 psi

Vacuum Rating at 68ºF

 Full

Vacuum Rating at 104ºF

 28 inHg

Min. Bending Radius at 68ºF

 5 in

Standard Length

 100 ft

Weight

 .67

Compliance Footnotes

 RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
