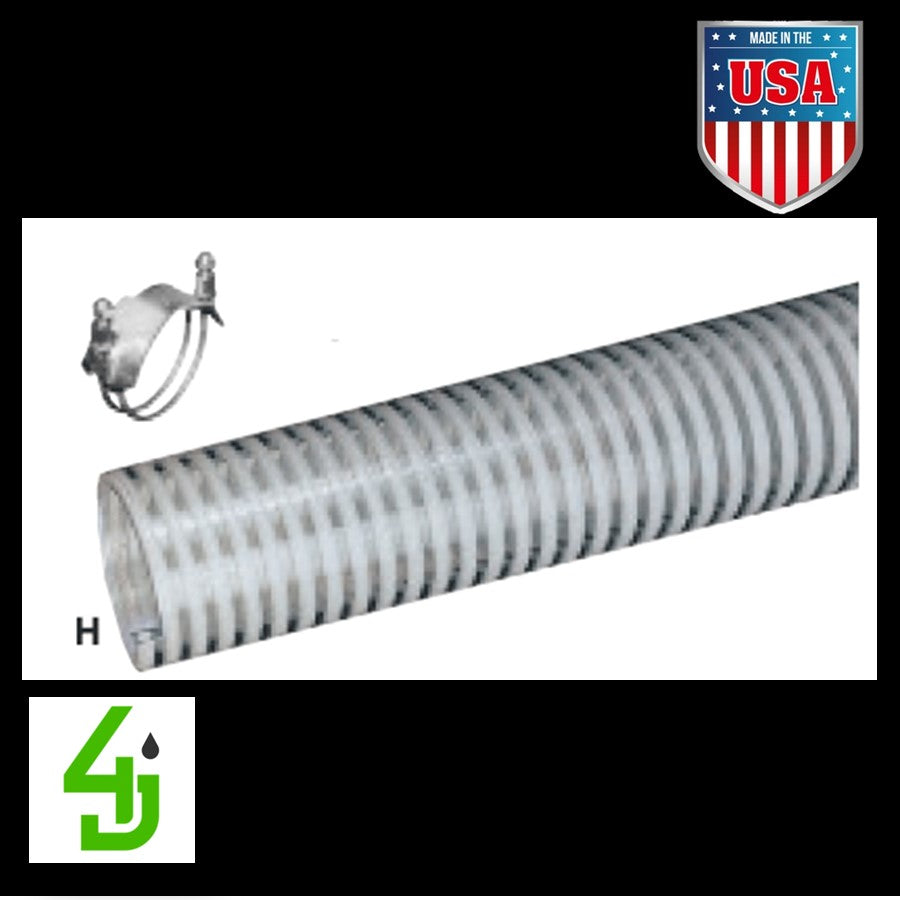

Kuriyama Tigerflex PVC Suction Hose H (White Stripe) 1 Inch x 100 foot

Kuriyama Tigerflex PVC Suction Hose H (White Stripe) 1 Inch x 100 foot

$249.95 USD
$249.95 USD
Sale Sold out

Kuriyama Tigerflex PVC Suction Hose H (White Stripe) 1 Inch x 100 foot \n \nPVC Tube with rigid PVC Helix


General Applications
  • Agricultural liquid fertilizer
  • Air seeder lines
  • Drain lines
  • Irrigation lines
  • Mining applications
  • Pumps, rental and construction dewatering
  • Pumps, trash
  • Rock dusting
  • Water suction - standard duty



Features and Advantages
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
  • Phthalate Free


Nominal Specifications


ID

 1 in 25.4 mm

OD

 1.26 in 32.0 mm

Working Pressure at 68ºF

 85 psi

Working Pressure at 104ºF

 60 psi

Vacuum Rating at 68ºF

 28 in Hg

Vacuum Rating at 104ºF

 26 in Hg

Min. Bending Radius at 68ºF

 3 in

Standard Length

 100 ft

Weight

 0.26 lbs/ft


Compliance Footnotes

 MSHA - Hose approved by the United States Department of Labor's Mine Safety and Health Administration as having met Part 18, Title 30 CFR, and the Interim Fire Criteria for Acceptance of Products Taken into Underground Mines as water transfer hose. Phthalate Free - Manufactured from all phthalate free materials.  RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
