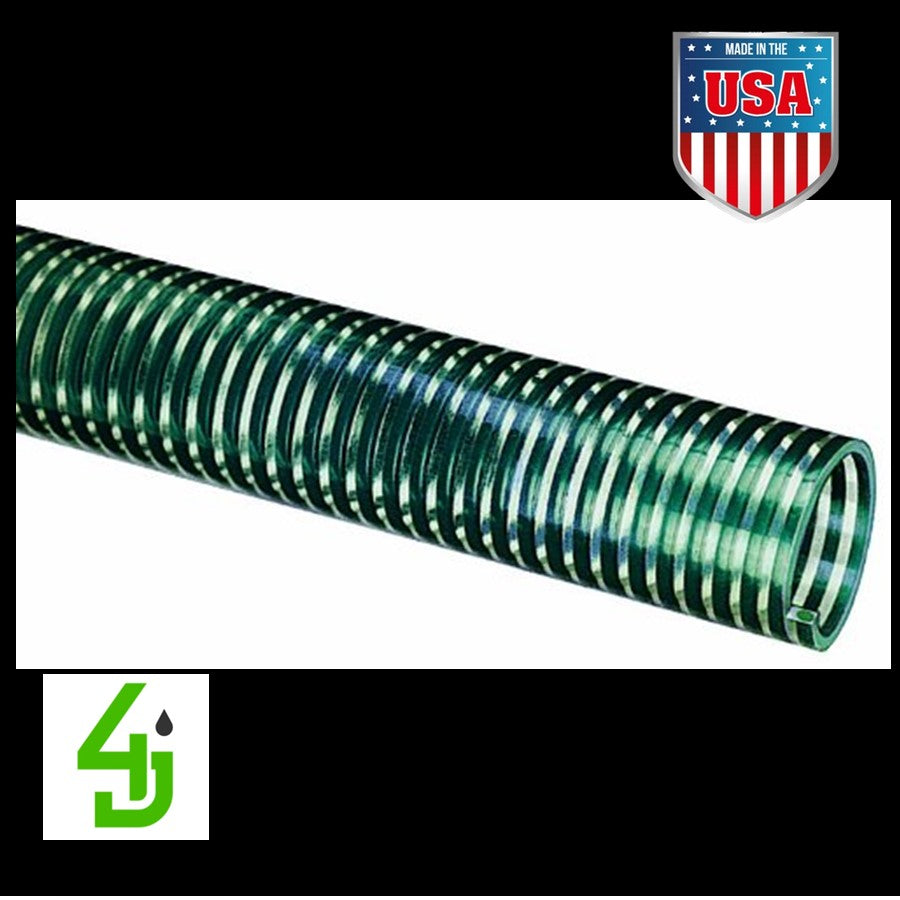

Kuriyama Tigerflex PVC Suction Hose K (Green Stripe) 1-1/4 Inch x 20 foot PVC Tube with rigid PVC Helix
General Applications
Agricultural liquid fertilizer
Air seeder lines
Drain lines
Irrigation lines
Mining applications
Pumps, rental and construction dewatering
Pumps, trash
Rock dusting
Water suction - standard duty
Features and Advantages
Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
Phthalate Free
Nominal Specifications
ID
1 1/4 in 31.7 mm
OD
1.56 in 39.6 mm
Working Pressure at 68ºF
85 psi
Working Pressure at 104ºF
60 psi
Vacuum Rating at 68ºF
28 inHg
Vacuum Rating at 104ºF
24 inHg
Min. Bending Radius at 68ºF
4 in
Length
20 ft
Compliance Footnotes
MSHA - Hose approved by the United States Department of Labor's Mine Safety and Health Administration as having met Part 18, Title 30 CFR, and the Interim Fire Criteria for Acceptance of Products Taken into Underground Mines as water transfer hose.Phthalate Free - Manufactured from all phthalate free materials. RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
