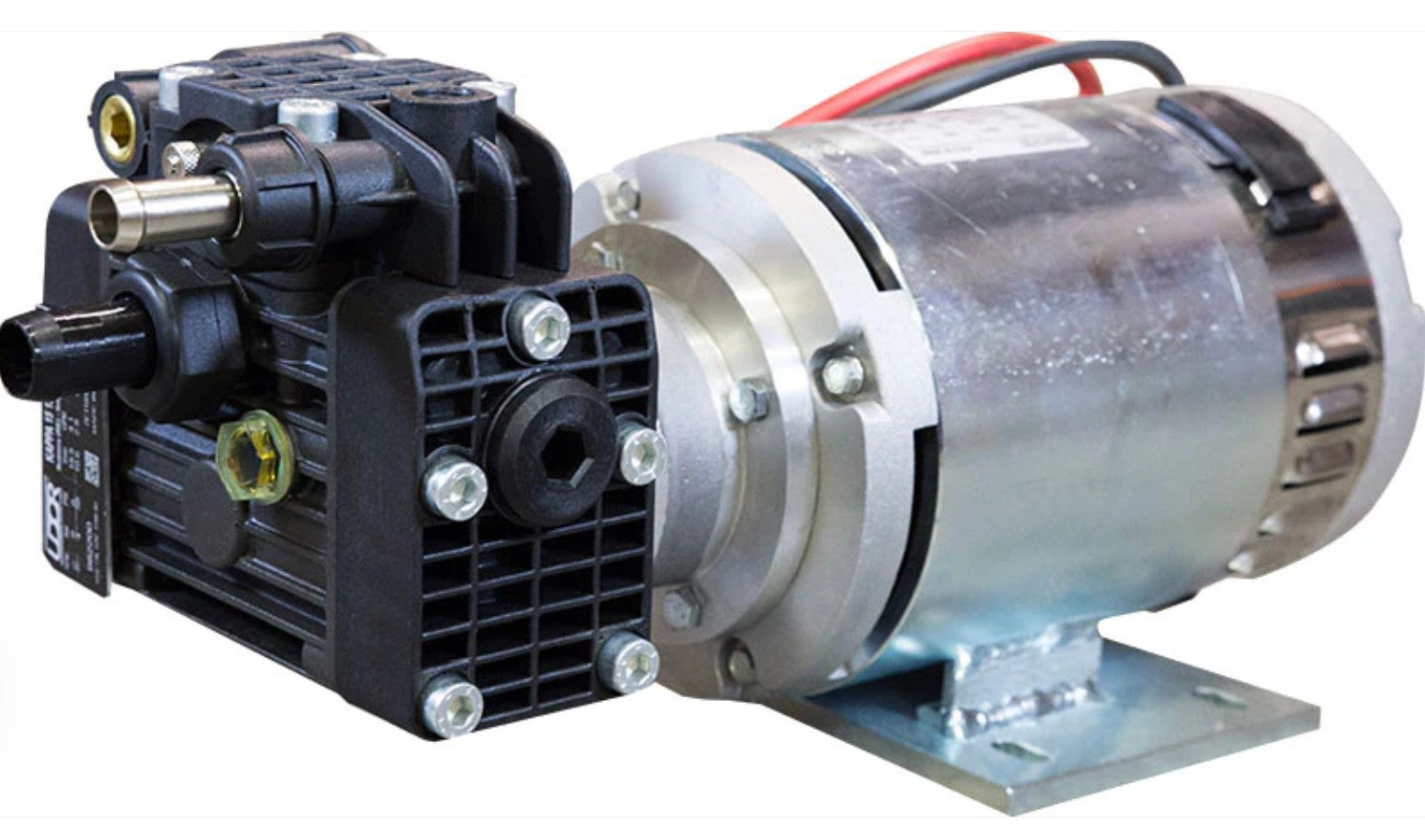

Udor KAPPA-18/12-HP Volt Diaphragm Pump

KAPPA Series 12-Volt Diaphragm Pumps are excellent for various pest control, agricultural, lawn care & injection spraying applications. They are internally manifolded with anodized aluminum construction and have glass filled, nylon heads. Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

• KAPPA-18 pump coupled to 12-volt DC motor
• Max flow: 4.2 gpm
• Max pressure: 70 psi
• Port sizes: 3/4" HB inlet, 1/2" HB outlet
• Pump shaft rotation: CW and CCW
• Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
• Housing: Anodized aluminum
• Recommended regulator: UD1/4-150 or 6815-1/2-300
• Max amp draw: 35
• Max fluid temperature: 140°F
• Weight: 35 lbs
• 150 PSI
