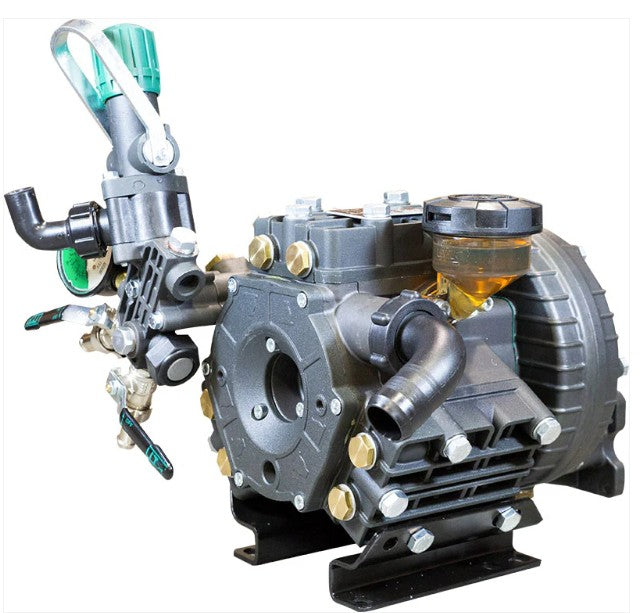

Udor Kappa 55/GR-5 Diaphram Pump with Control Unit

KAPPA-55 3-cylinder, medium pressure diaphragm pump with control unit and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines. These pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-55 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

• Max flow: 15 gpm

• Max pressure: 350 psi

• Includes 6010.24/LP control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines

• Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass

• Pump shaft rotation: CW and CCW

• Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available

• Housing: Anodized aluminum

• Max fluid temperature: 140°F

• Weight: 47 lbs
